- 【High Efficiency】The inverter has built-in high-precision maximum power point tracking, which can optimize the power collection from the solar panel, accurately capture and lock the maximum output power point, and greatly increase power generation to more than 25%.
- 【Premium Material】The inverter is made of aluminum alloy, which is durable, corrosion-resistant, and not easy to rust. You can use it for a long time without frequent replacement, and your cost can be saved.
- 【LCD Display】The inverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation. After the installation of the power station, you don't need to do maintenance work.
- 【Digital Control】The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the inverter strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users.
- 【Electrical Isolation】The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable.
Description

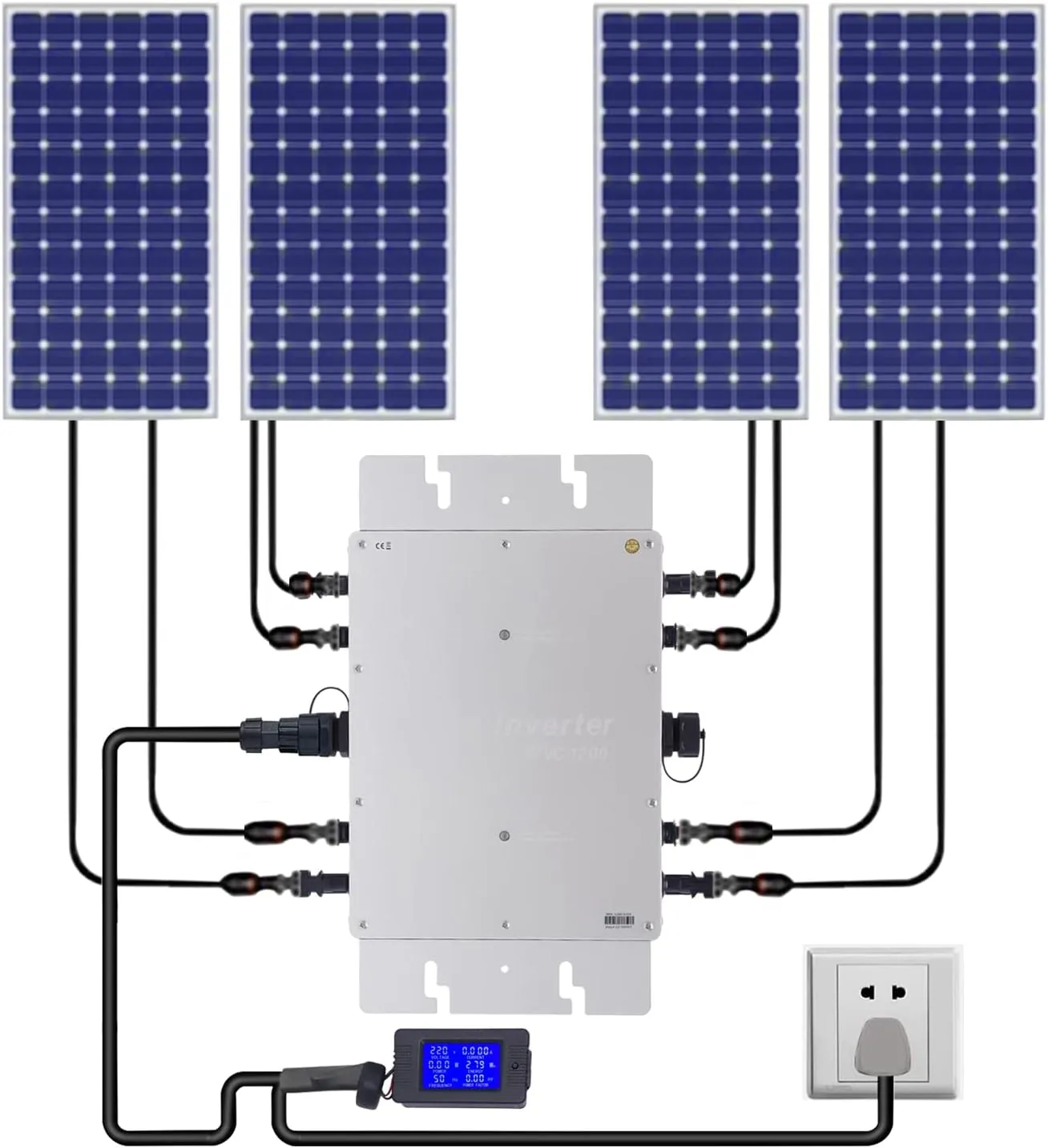

An inverter can efficiently turn the direct current generated by solar panels into the alternating current used by household appliances. Made of fine aluminum alloy, this IP65 waterproof inverter has a wide range of functions, good safety, convenient installation, and high-cost performance. We believe this inverter will not disappoint you.
Specification
Model: WVC-1200W
Color: Silver
Material: Aluminium Alloy
Power: 1200W
Voltage: 110V
Plug Type: US Standard
Maximum Input DC Voltage: 54V
Peak Power Tracking Voltage: 22-45V
Operating Voltage Range: 17-50V
Min/Max Start-up Voltage: 22-50VDC
Maximum DC Short Circuit Current: 80A
Maximum Input Operating Current: 54.4A
Peak Power Output: 1200watt
Rated Output Power: 1150watt
Rated Output Current: 9.58A
Rated Voltage Range: 80-160VAC
Rated Frequency Range: 57-62.5Hz
Power Factor: ＞99％
Max Unit Per Branch Circut: 3pcs(Single-phase)
Static MPPT Efficiency: 99.5%
Maximum Output Efficiency: 91.2%
Night Time Power Loss: <1W
Total Flow Distortion: <5%
Ambient Temperature Range: ﹣40℃~60℃/﹣40℉~140℉
Waterproof Rating: IP65
Cooling Method: Self-cooling
Communication Mode: Power Line Carrier
Power Transmission Mode: Reverse Transmission, Load Priority
Gross Weight: 4.08kg/8.99lbs
Net Weight: 2.88kg/6.35lbs
Product Size: 21*37.4*4cm/8.27*14.72*1.57inch
Package Size: 47.5*34*11.5cm/18.7*13.39*4.53inch
Package Included
1* Micro Inverter
1* Power Cord
1* English Manual
Other Accessories for Installation
Notes
1.Please install the inverter correctly according to the instructions. If you have any questions, please contact the relevant personnel.
