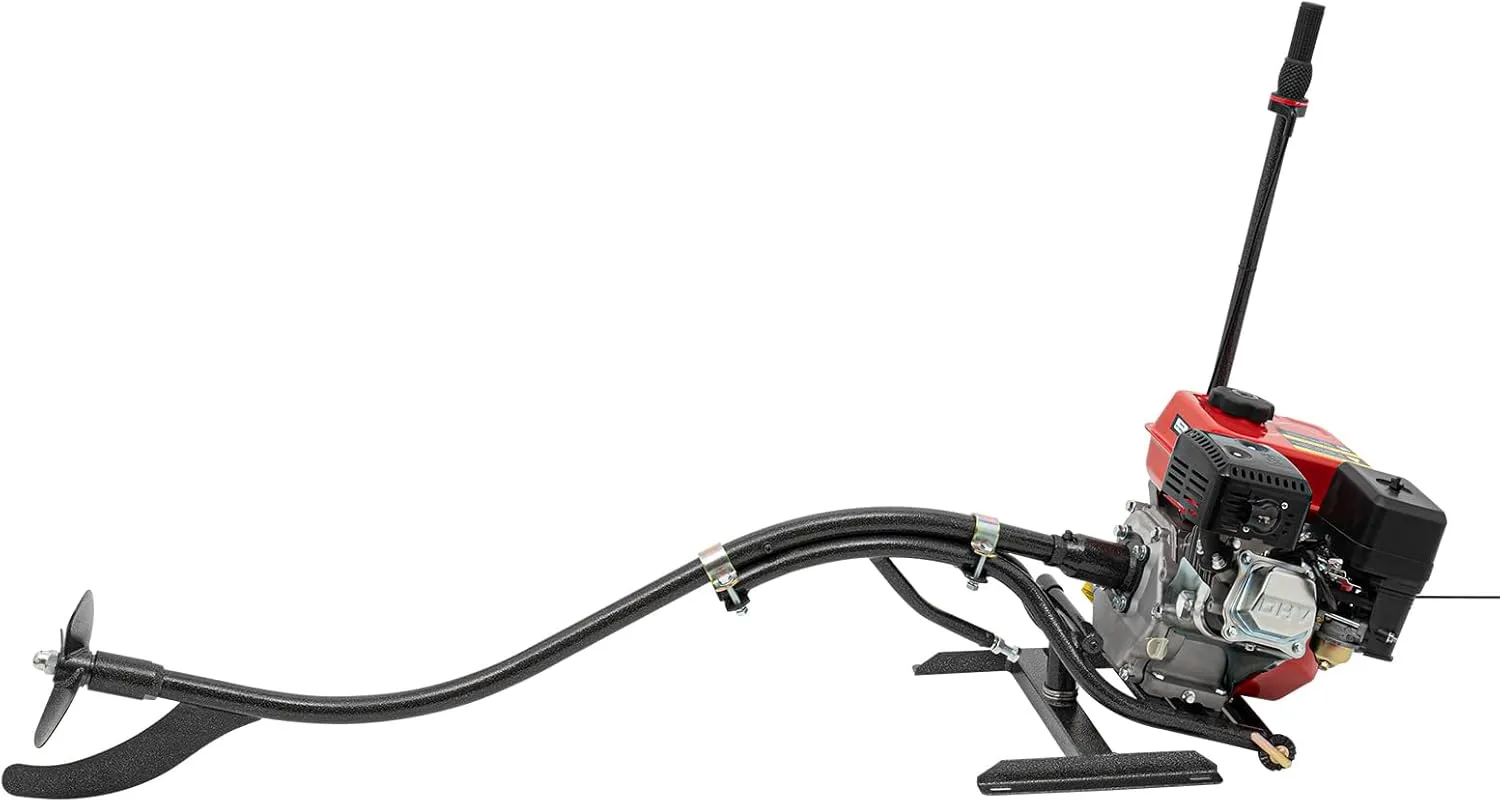

- 【HIGH QUALITY AND DURABLE】: This outboard motor is mainly made of high-quality aluminum and adopts a spray molding process, making it highly to impact, friction.
- 【HIGH PERFORMANCE】: The superior engine wind cooling system and three-blade propellers can help reduce drag and balance thrust, overcome huge, and improve driving speed, achieving optimal performance and ensuring high efficiency.
- 【LARGE CAPACITY】: This outboard engine has a fuel tank capacity of 0.95 gal and can work continuously for over 3 hours, meeting the needs of long-distance travel and work.
- 【FLEXIBLE STEERING】: This gas boat motor supports 180-degree flexible steering, allowing you to easily handle various curves.
- 【WIDE RANGE OF APPLICATION】: The 7.5 hp outboard motor is suitable for small boats of 9.84-19.69ft such as inflatable boats, iron boats, and wooden boats. The engine outboard motor applies to water operations in rivers, lakes, reservoirs, fish ponds, etc.
Specification
Color: Black and Red
Material: Aluminum and Steel
Surface Treatment: Spray Molding Process
Assembly Required: Yes
Starting Method: Manual Start
Recommended Fuel: Normal Unleaded Gasoline
Engine Type: 4 Stroke, Single Cylinder, Air-cooled
Ignition System: TCI
Power: 7.5HP
Power Type: AWT170F/P(AWT170FD/P)
Bore*Stroke: 70*55mm/2.76*2.17in
Displacement: 212cc
Max Power: 4.3kW/3600rpm
Power Rating: 4.0kW/3600rpm
Peak Torque: 9.5N·m/2500rpm
Fuel Consumption: ≤395g/12.66oz/kW·h
Fuel Tank Capacity: About 3.6L/0.95gal
Oil Volume: 0.6L/0.16gal
Speed: 3600rpm
Running Time: About 3 Hours
Steering Angle: 180°
Operating Speed: ≥ 9.5km/5.9miles/h
Applicable Boat Size: 3-6m/9.84-19.69ft
Rack:
Rack Size(L&H): 101(80 21cm)*20cm/39.76(31.49 8.27)*7.87in
Net Weight: 18.5kg/40.79lbs
Gross Weight(kg): 19.6kg/43.21lbs
Package Size: 135*29*19cm/53.15*11.42*7.48in
Engine:
Engine Size: 36.5*32*34.5cm/14.37*12.59*13.58in
Net Weight: 19kg/41.89lbs
Gross Weight(kg): 26.8kg/59.08lbs
Package Size: 42*47*45cm/16.54*18.5*17.72in
Package Included
1*Four-stroke Outboard Engine
1*Rack
1*English Manual
Notes
1.Please read the operating manual and label carefully before use and pay particular attention to the safety instructions included.
2.Please don't start the engine on the bank.
3.Please use up the gasoline in the fuel tank before storing it for a long time.
