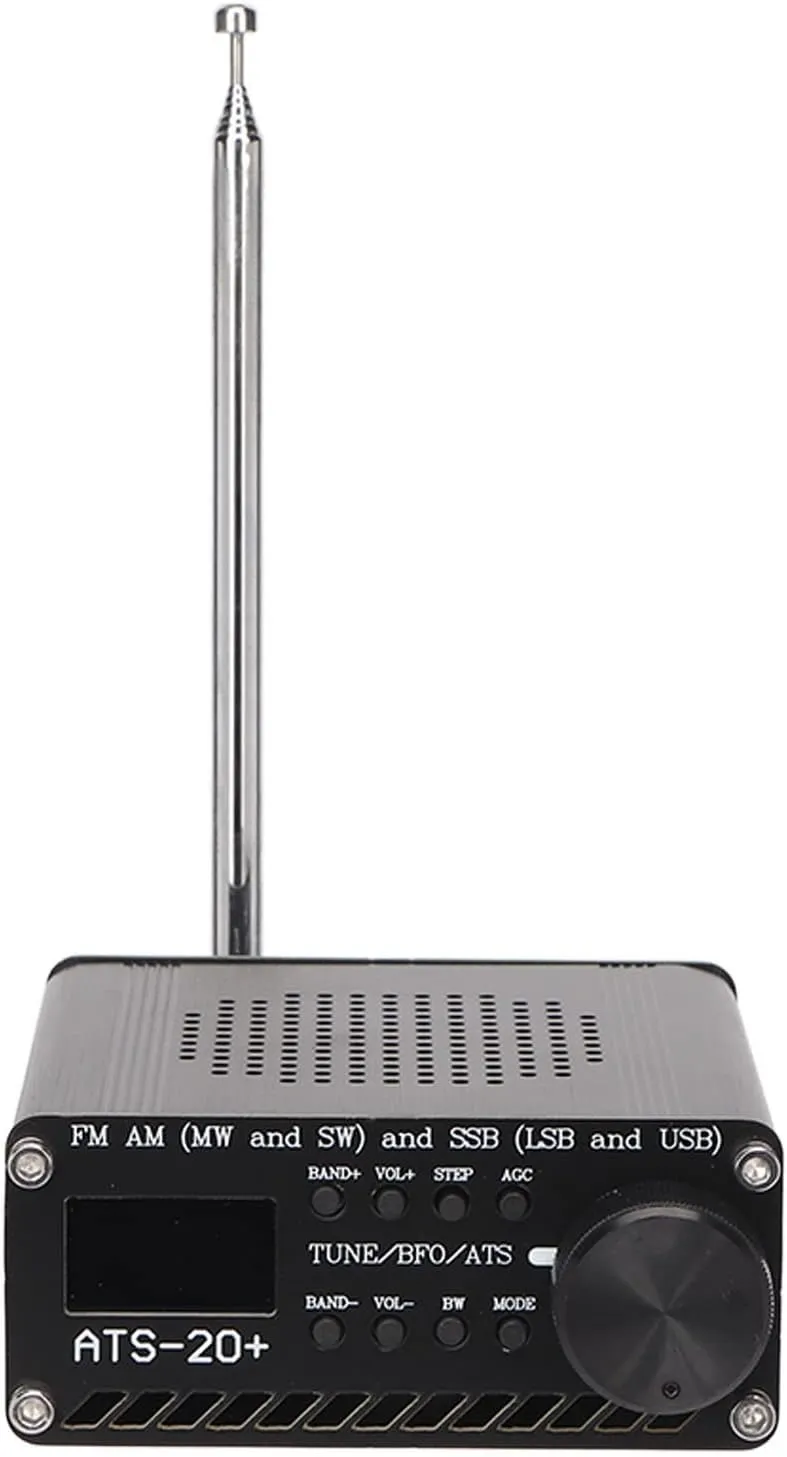

- High Sensitivity: FM AM world band receiver adopts multiple conversion and DSP digital demodulation technology, which greatly improves the sensitivity of radio.
- Multiple Channels: Radio receiver uses sound bandwidth filters 0.5, 1, 1.2, 2.2, 3 and 4Khz; 22 commercial and amateur radio frequency bands are pre configured.
- Applicable: FM AM world band receiver suitable for outdoor camping and listening to radio music in the kitchen are necessary for participating in parades and family life.
- Stable Performance: The radio receiver is made of aluminum alloy, which is sturdy and . The PCB retains the for si4735 package. Users can replace the chip by themselves and the software is compatible.
- Global Broadcasting: World band digital receiver is an FM stereo, AM,LW,SW, world band receiver, suitable for global FM broadcast reception.
Specification:
Item Type: Radio Receiver
Material: Metal, PCB
Model: ATS 20
Screen: 0.96 inch
Charging Interface: Type C
Speaker: 8ohm 1.5W
Battery Type: 800mAh Lithium Ion Battery (Built In)
Supported Frequency Bands: FM, AM (MW and SW) and (LSB and USB)
Band:
{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 m/524.9ft
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 m/262.5ft
{SW_BAND_TYPE, 4500, 5500, 4850, 5},
{SW_BAND_TYPE, 5500, 6300, 6000, 5},
{SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 m/131.2ft
{SW_BAND_TYPE, 7800, 10000, 9600, 5},
{SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 m/98.4ft
{SW_BAND_TYPE, 11000, 12500, 11940, 5},
{SW_BAND_TYPE, 12500, 13900, 13600, 5},
{SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 m/65.6ft
{SW_BAND_TYPE, 14500, 15900, 15300, 5},
{SW_BAND_TYPE, 15900, 17900, 17600, 5},
{SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 m/55.8ft
{SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 m/49.2ft
{SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 m/39.4ft
{SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB Band (11m/36.1ft)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}, 10 m/32.8ft
Package List:
1 x Radio Receiver
1 x Antenna
1 x Type C Line
1 x Foot Mat
