- Standing Wave Power Meter: This digital power standing wave meter directly displays key parameters such as forward power, reflected power, antenna power, antenna efficiency, standing wave and battery voltage. It also performs waveform display and data storage for easy data analysis and comparison.
- Ultra-wide Power Measurement Range: short-wave power standing wave meter power range 0.5 ~ 120w (SSB mode can be up to 200w, more than 200w buzzer alarm),1.8MHz to 50MHz frequency range,1.0 to 99.99 standing wave measurement range. One key display mode function, mode can be switched at will.
- High Precision Measurement: digital standing wave power meter adopts digital processing and stable measurement algorithm, can accurately measure power and standing wave ratio in a variety of complex working environments, through the digital display can understand the working state of the circuit or equipment, easy to debug and optimize
- Hummingbird Reminder Function: This standing wave meter has a high SWR alarm function, when the SWR exceeds the preset value, it will issue an alarm in time to remind you. Built-in 1000mAh large-capacity battery, at the same time, when the battery is under voltage, the yellow light is on, the buzzer is constantly prompting, after noticing, you can turn off the buzzer with one click
- Multi-interface Design: the digital power standing wave meter has a variety of interfaces, 5V/1A Type-C charging interface, ANT interface, TX interface, to ensure the compatibility of multiple devices and convenient connection.

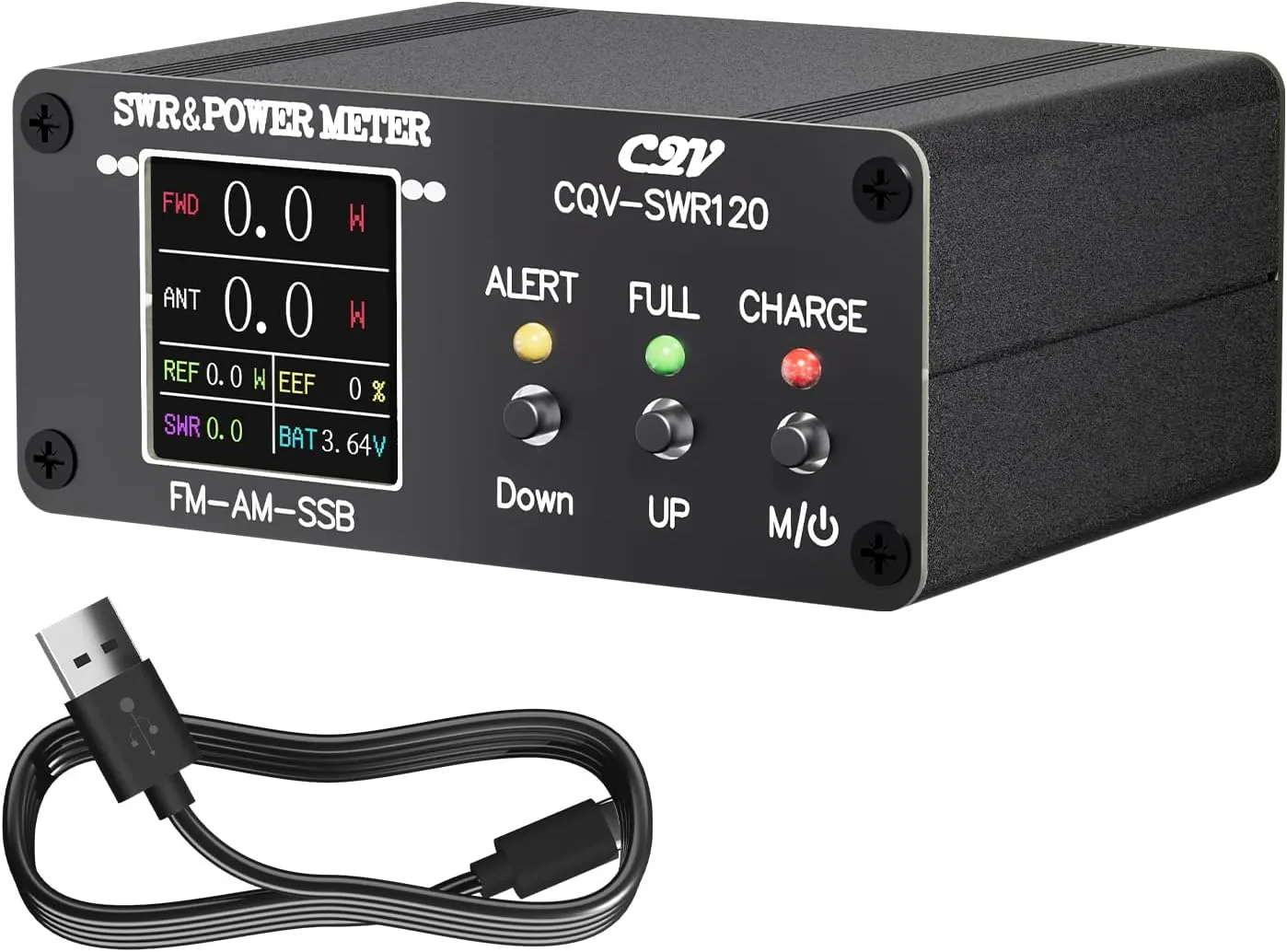

Compact and portable, this digital power standing wave meter features a full-color LCD display that directly displays forward power, reflected power, antenna power, antenna efficiency, standing wave, and battery voltage to precisely meet the needs of hobbyists. With high level radio alarm function. Delay shutdown function, launch automatic boot function and battery undervoltage protection function. LED light dual indicator function. Power fine-tuning function, standing wave fine-tuning function. One click to switch the Chinese and English menus.
- Package Dimensions : 5.71 x 3.54 x 2.09 inches; 9.52 ounces
- Date First Available : March 5, 2025
- Manufacturer : Pinaple
- Country of Origin : China
