SPECIFICATIONS
AC Output Frequency: 50Hz/60Hz ±2Hz
AC Output Socket: Universal Socket
AC Output Voltage: 220V/110V±15%
Battery Capacity: 12.8V 76.8wH
Battery Type: LiFePO4
DC Output Voltage: DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521
Display screen: Yes
Model Number: Power Station
Nominal Capacity: 24000mAh,24000mAh
Rated Power: 100W
Set Type: Charger Sets
Size: 160*100*143mm
Type: LiFePO4
feature 1: 100W portable power bank generator
feature 2: Power bank camping
feature 3: solar portable power station
feature 4: emergency power supply
feature 5: home portable power supply
feature 6: portable charging station
feature 7: Outdoor fast charging power supply
feature 8: mobile phone laptop charger
Dear friends:
1. We are a power station and solar system installation accessories factory. If you are a drop shipper, you can contact our Gaiaray team and we will provide you with the best price.
2. If you have any questions, please contact us directly and we will reply within 24 hours.
3. If you are satisfied with our products and services, you can give us 5 stars.
4. If you are my store fan, you will become a VIP customer.
Specification:
Rated power: 100W
Output waveform: correction wave
AC output voltage: 220V ±15%
AC output frequency: 50Hz/60Hz ±2Hz
Conversion efficiency: maximum value>90%
Charging interface: external charger interface and solar panel charging interface DC5521*1 (built-in solar intelligent controller)
AC output socket: universal seat
DC output voltage: DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521
LED light: The LED light is high on, the LED light is half on, the LED light flashes, and the LED light is turned off in 4 states
Product Size W*D*H(mm) :160*100*143
Net weight: 1kg
LiFePO4 battery:
2000 cycles : approximately equal to 10 years of full capacity use
Safety: Short circuit is not easy to cause fire and explosion
Durability: Long battery life
High temperature resistance: the peak electric heating reaches 350-500°C
Environmental protection: generally considered to be free of heavy metals and less polluted than rare metals
3 charging methods: indoor and outdoor flexible energy replenishment, MAINS charging, car charging, solar charging
Rated Power | 100W |
Output Waveform | Modified Sine Wave |
AC Output Voltage | 220V/110V±15% |
AC Output Frequency | 50Hz/60Hz ±2Hz |
Conversion Efficiency | Maximum Value>90% |
Charging Interface | External Charger Port and Solar Panel Charging Port DC5521*1 (Built in solar intelligent controller) |
AC Output Socket | Universal Socket |
DC Output Voltage | DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521 |
LED Light States | LED bright, half-bright, flashing, LED off 4 states |
Battery Type | LiFePO4 |
Battery Capacity | 12.8V 76.8wH |
Charging Current | Maximum Value 2A |
AC Charger Specifications | 5V 2A universal mobile phone charger (prepared by user) |
Charging Time | After full discharge, the battery capacity reaches 80% after 10 hours of charging |
LCD | Battery Capacity, Battery Voltage, State of Charge, State of Discharge |
Heat Dissipation | Automatic cooling |
Protection Functions | Low Voltage, Over Voltage, Over Load, Over Temperature, Short Circuit |
Operating Ambient Temperature | -10～40℃ |
Operating Environment Humidity | 10～85% |
Storage Ambient Temperature | —20～70℃ Without Condensation |
Storage Environment Humidity | 5～90% |
Structural Characteristics | ABS Fireproof Enclosure |
Net Weight(kg) | ≈1kg |
Product Size W*D*H(mm) | 160*100*143 |
Product Features：
1. Large Capacity & Versatile Use: With a substantial 24000mAh capacity, the portable solar power station caters to a wide array of situations, from outdoor camping and self-driving tours to fulfilling household emergency needs during power outages. Stay powered up anywhere, anytime.
2. High Quality Lithium Iron Phosphate Battery: The power generator is equipped with a Lithium Iron Phosphate battery that guarantees over 2000 charge cycles. This high-quality power battery pack ensures a longer lifespan and safer use.
3. Compact and Powerful: Improved over other products on the market, the outdoor camping power bank boasts a smaller volume and lighter weight while maintaining powerful functionality. It can power a variety of electronic devices, making it a convenient and reliable choice for outdoor use.
4. LED Lighting & Diverse Output: The outdoor power supply features LED lighting with four modes: high brightness, half brightness, flashing, and off. It provides a DC5V 2.4A dual USB output and a DC12V3A dual DC5521 output, catering to electronic and outdoor equipment, offering significant convenience.
5. Safe and Efficient: The portable outdoor generator prides itself on safety and efficiency. It provides fast charging and includes multiple safety protections, ensuring reliability and durability for outdoor use.

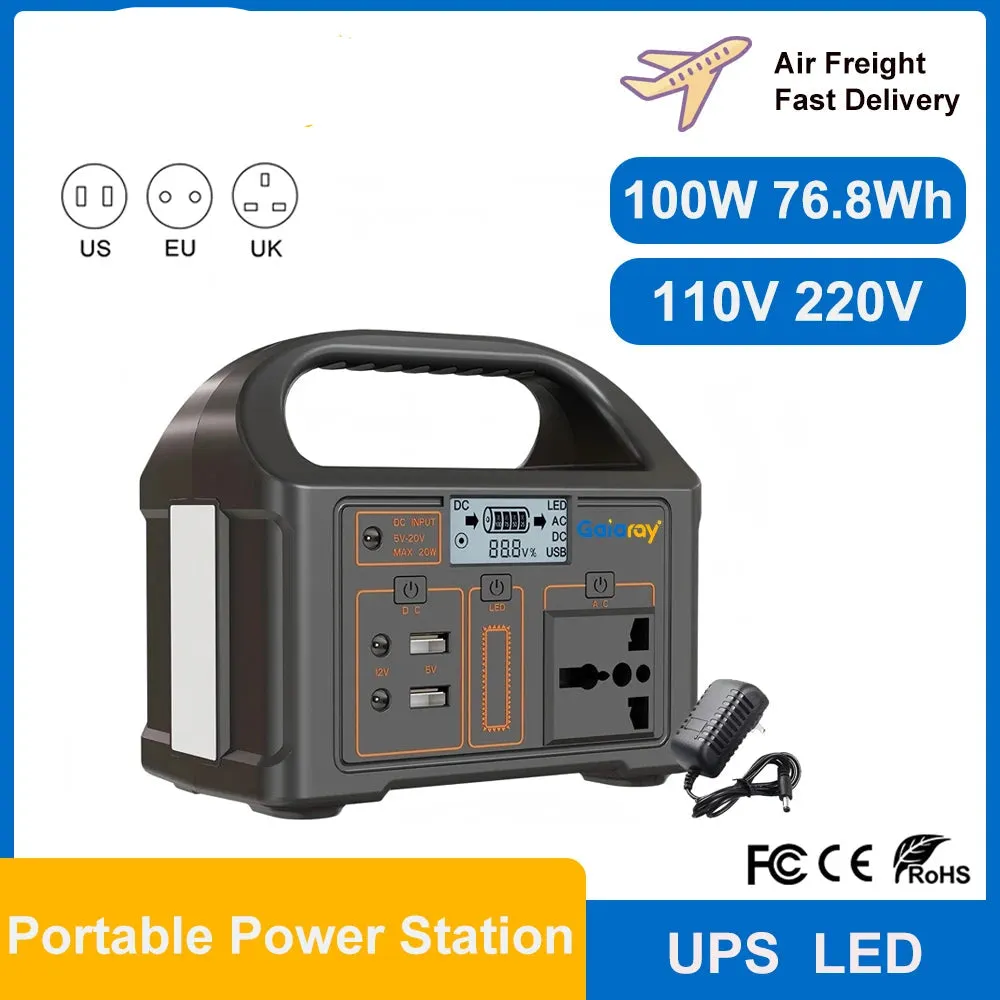

High capacity power station

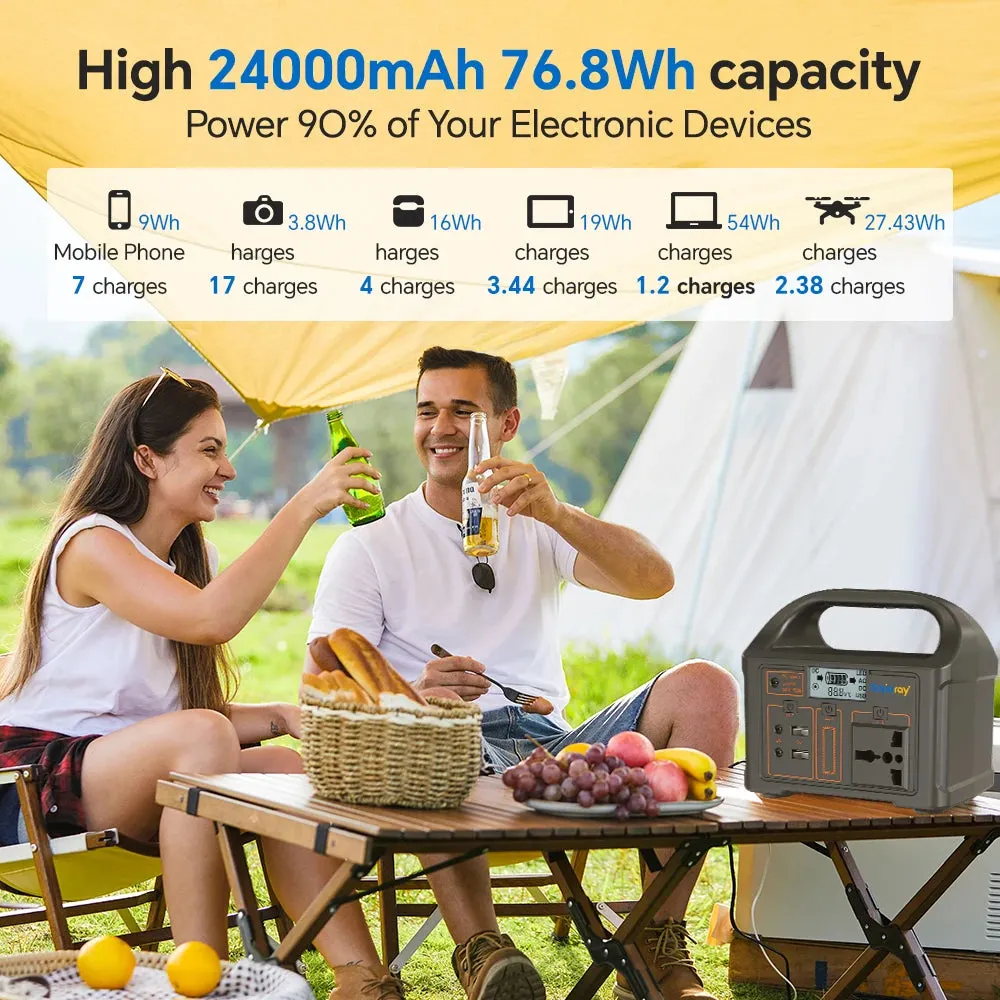

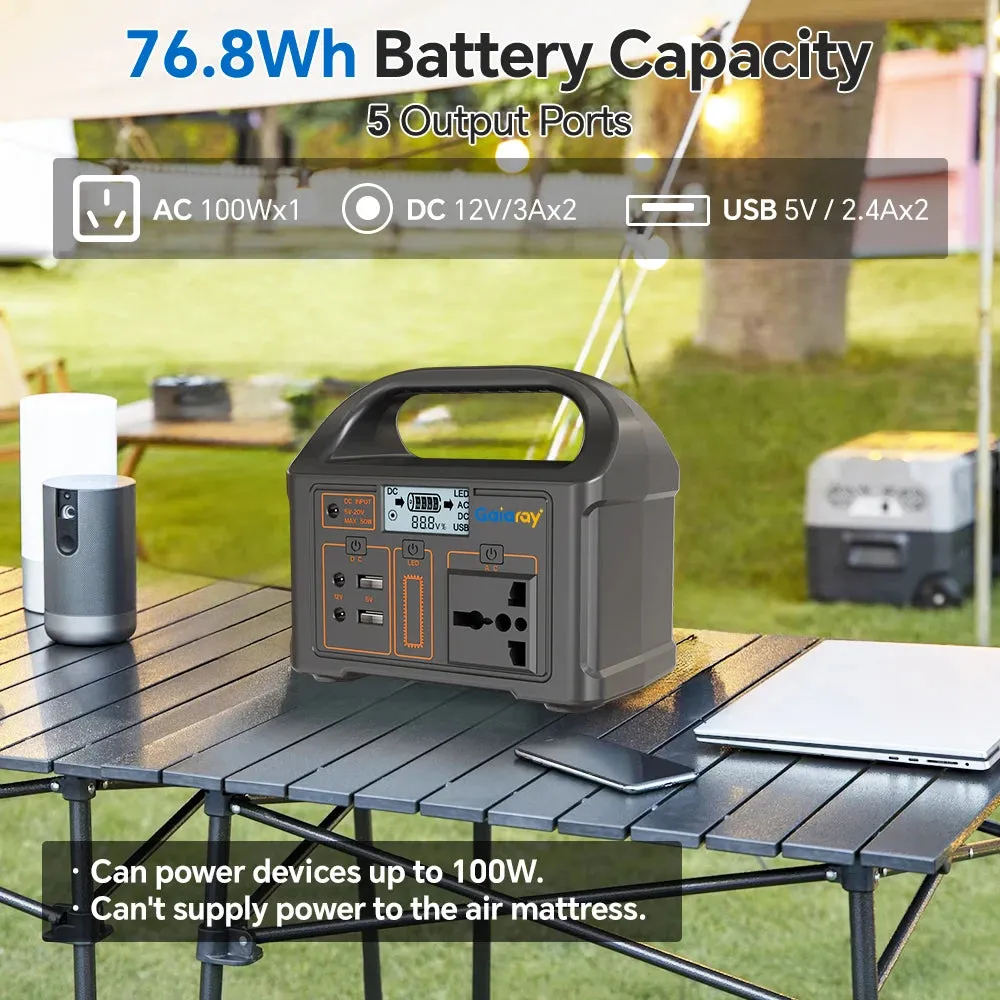

100W 24000mAh high capacity outdoor power station meets your needs.
100W Powerful AC Output
Supports 5 devices to output at the same time, ready to power your smartphone, tablet, laptop, camera, lamp, drone, fan, car appliances, etc.
Uninterruptible power supply and multiple protections
An uninterruptible power supply (UPS) can continuously provide power to your devices, protect your devices at all times, and extend the life of your devices.
High cycle LiFePO4 battery
3000 cycles, built-in LiFePO4 battery, extending the service life of the power station.
Outdoor Emergency Power Supply
100W power station for outdoor camping emergency power, Power Anytime and Anywhere。

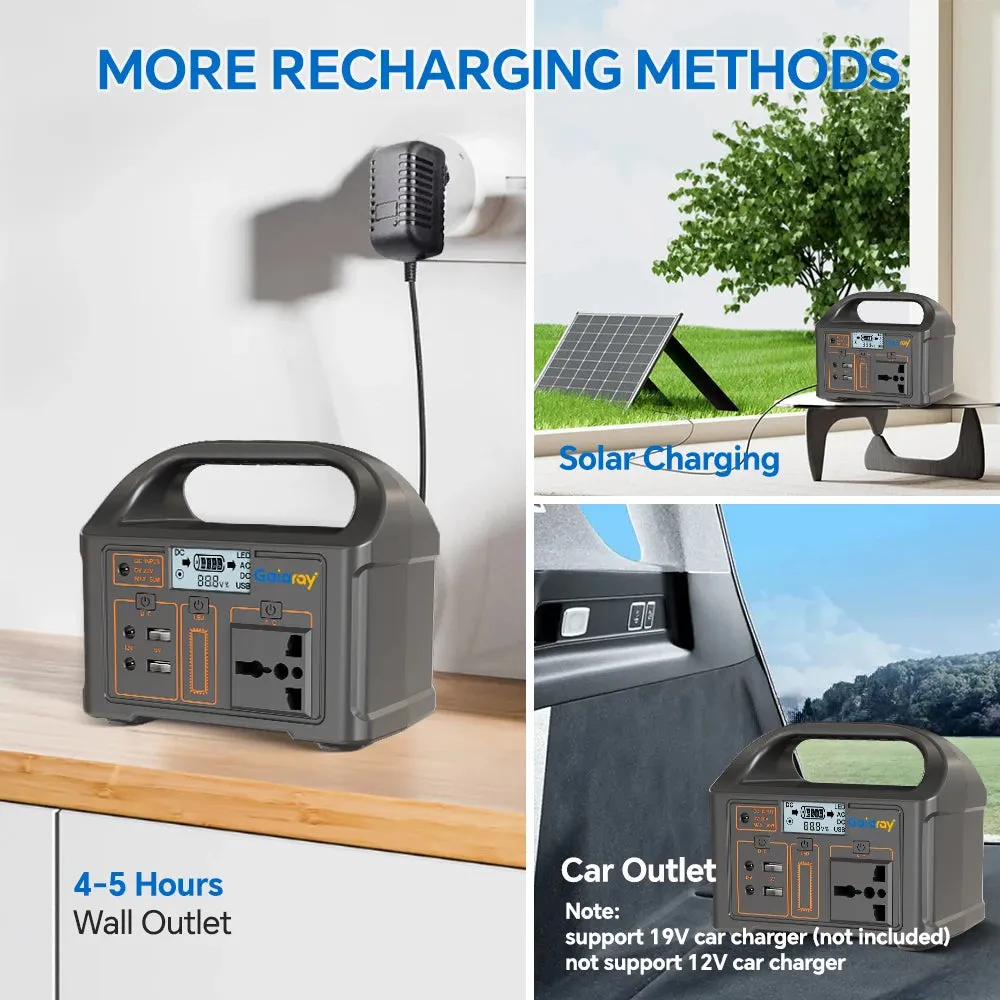

Multiple charging methods

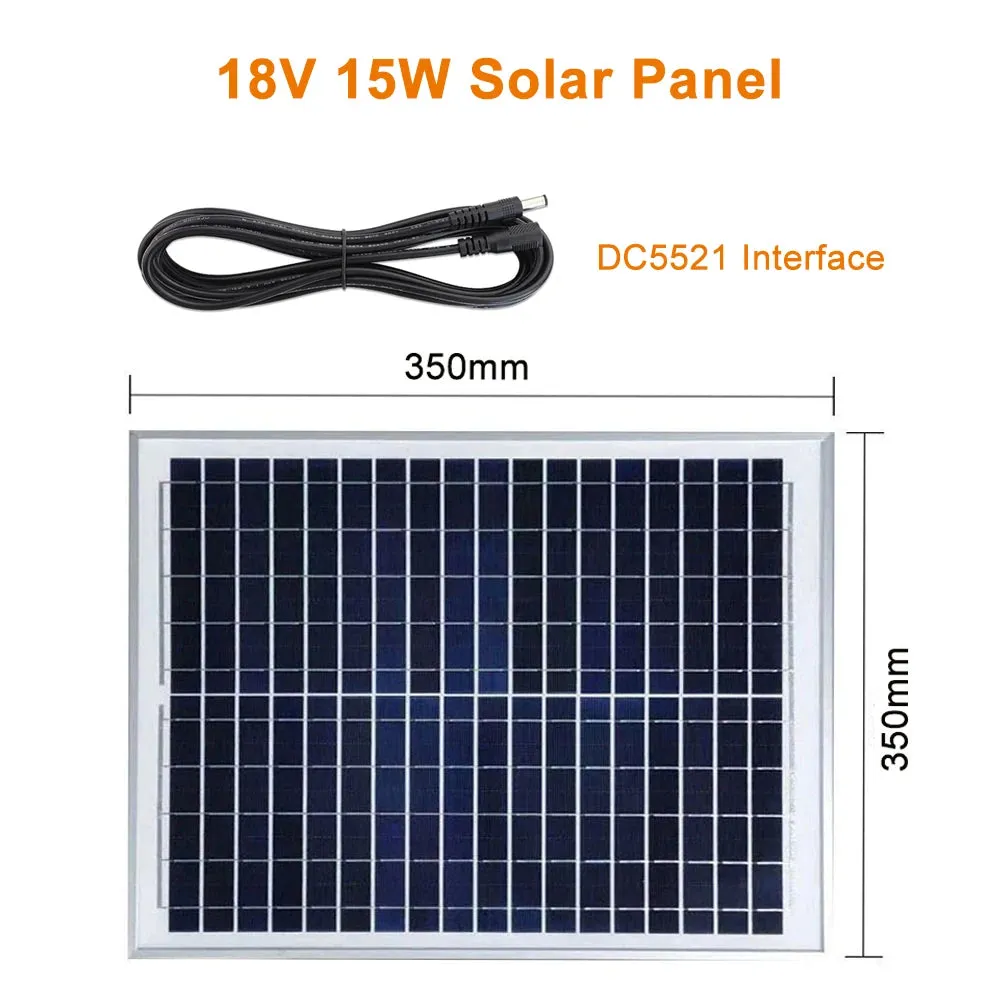

Supports charger charging, solar panel charging and car charging, charging time is about 5 hours.

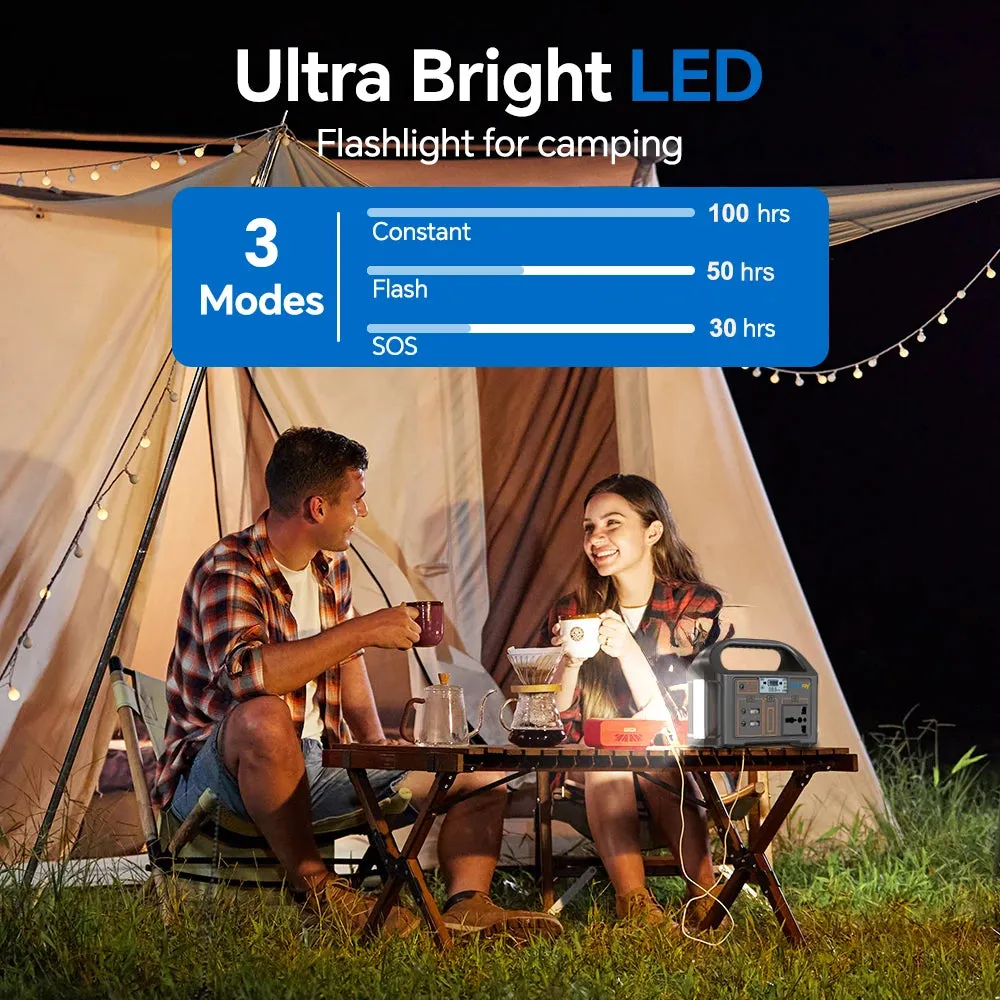

Emergency LED Lights
LED bright, half-bright, flashing, LED off 4 states
LCD Display
The battery capacity, battery voltage, charging status, and discharging status are clearly visible.
Multiple application scenarios
Suitable for household power reserve and outdoor camping emergency power.

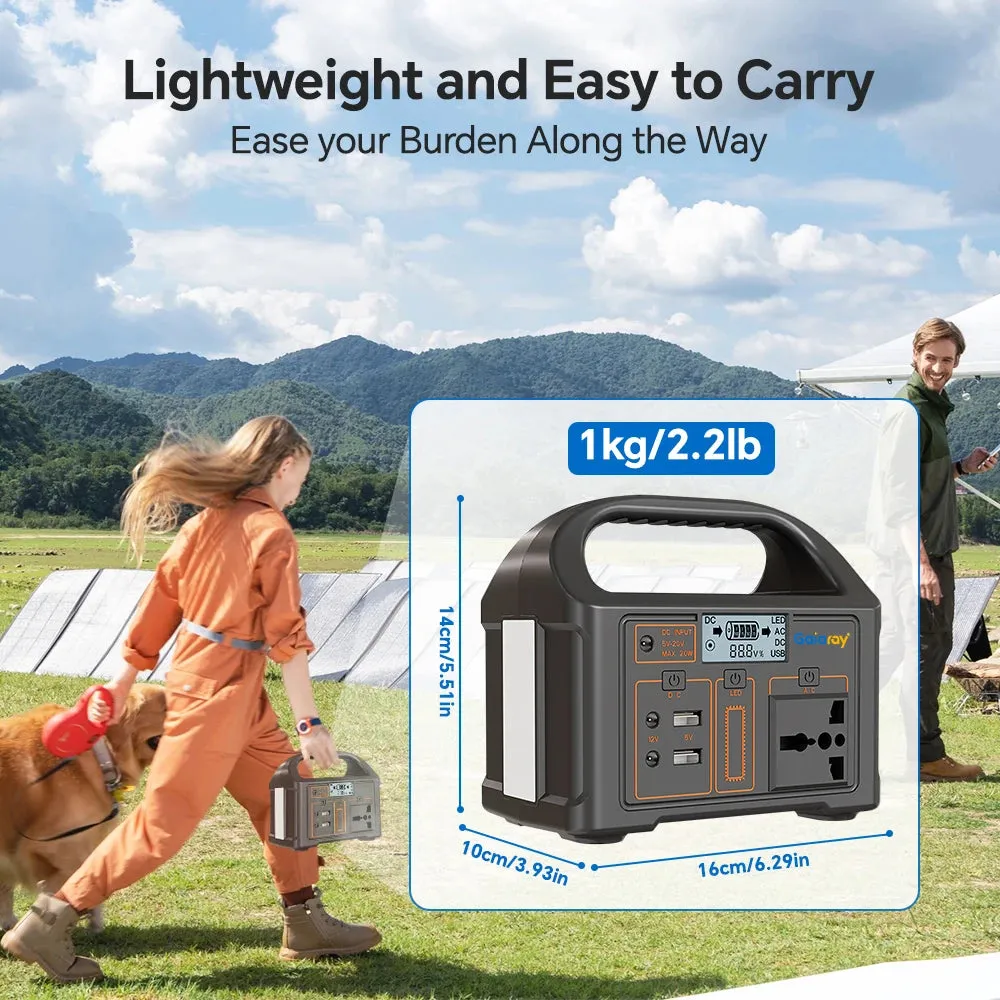

Easy to carry
Small size, light weight, easy to carry.
Package List
100W Power Station*1

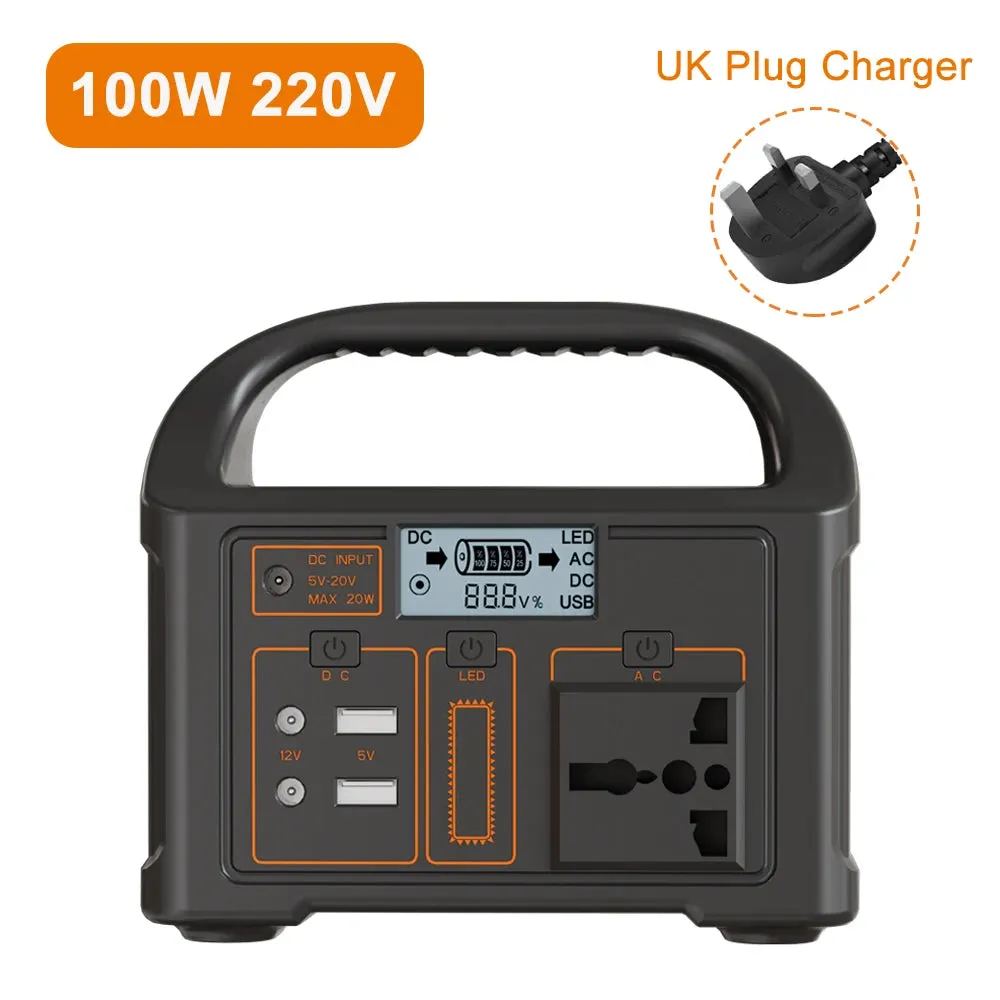

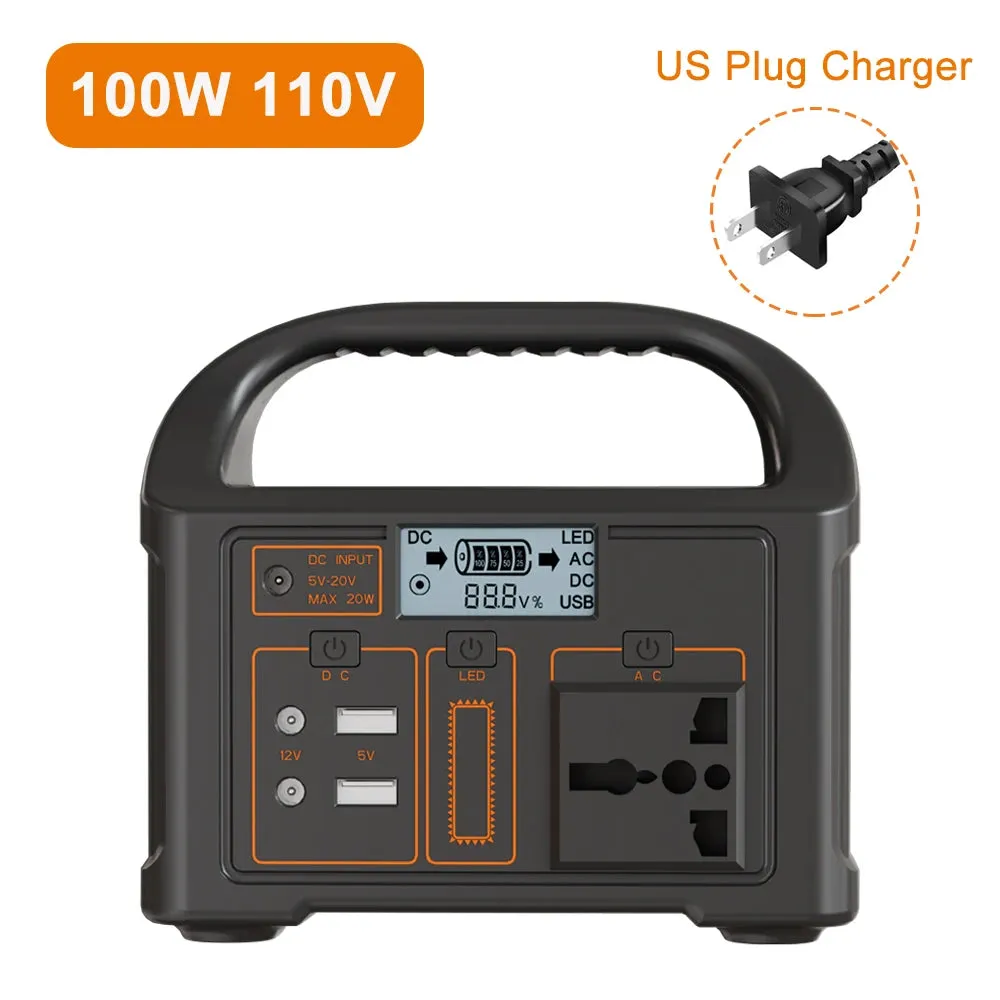

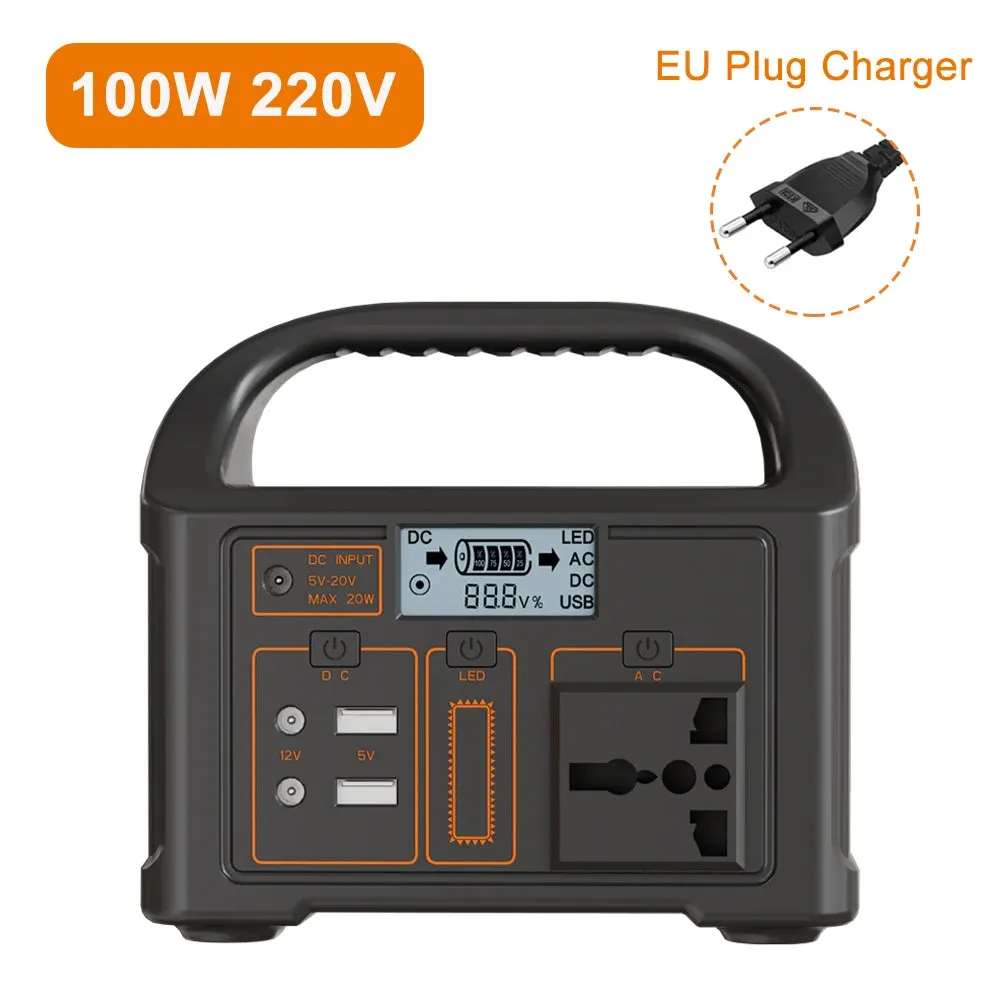

Charger (EU/US/UK plug optional)*1
Product Manual*1
