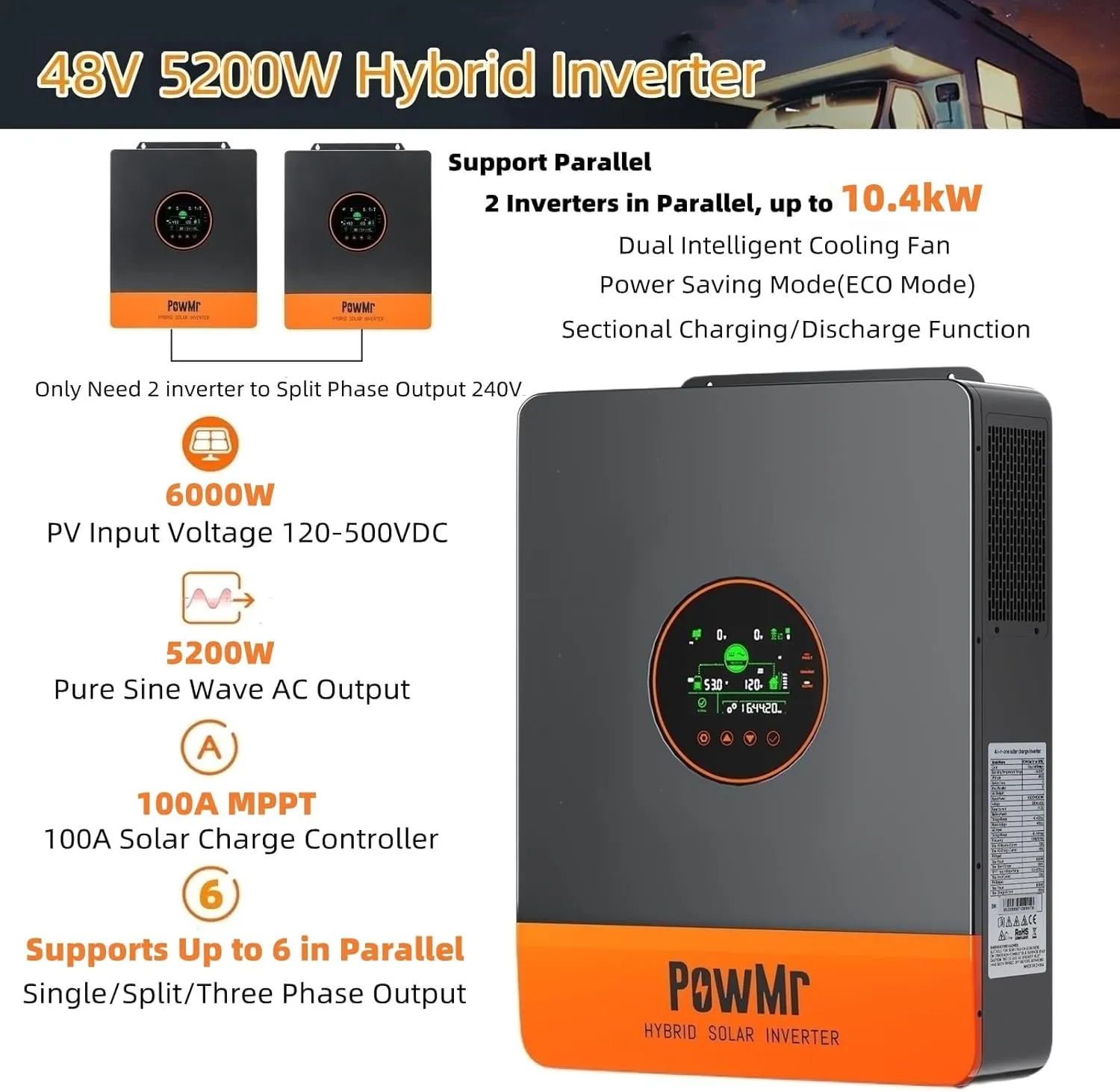

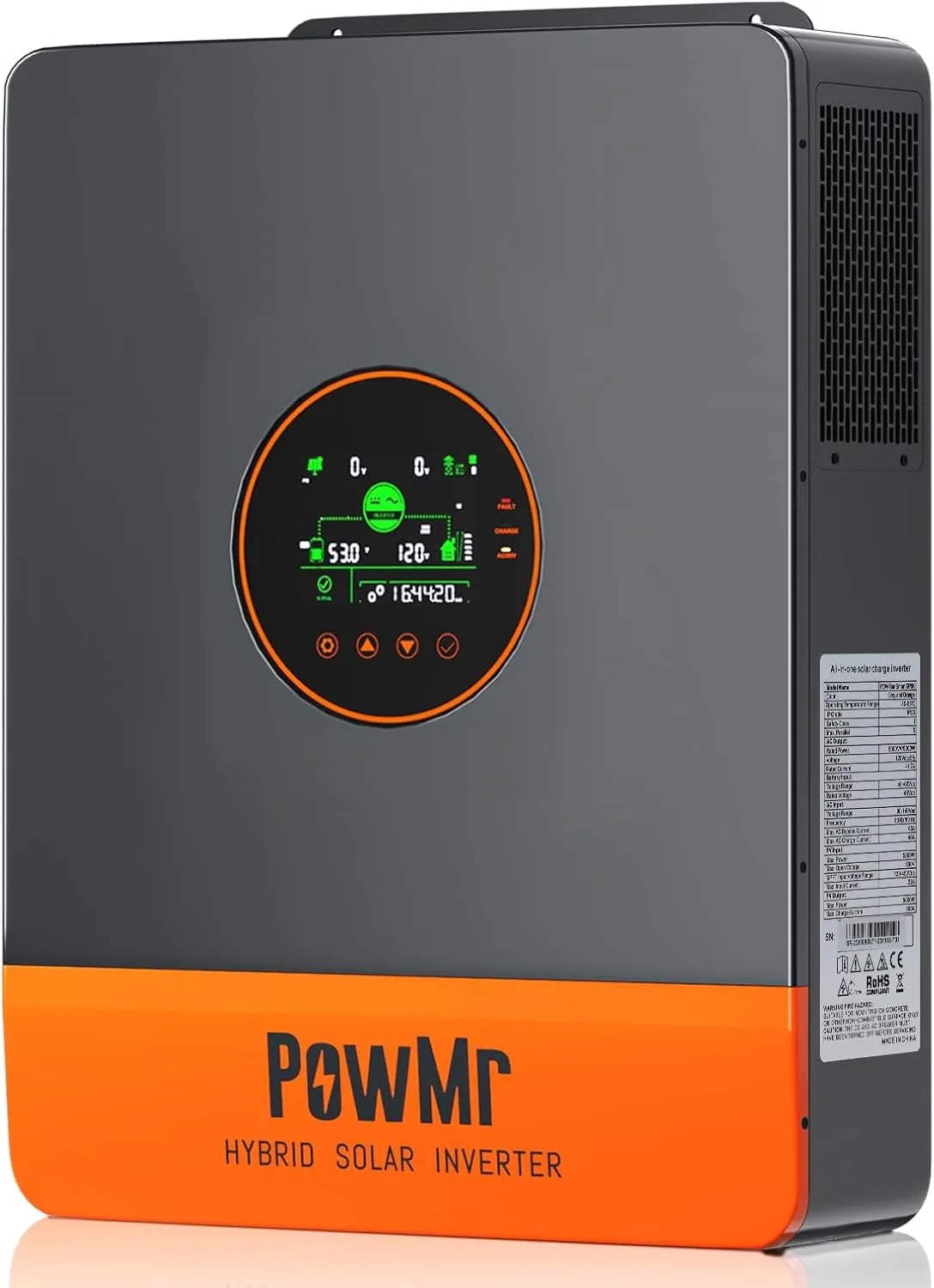

• 【Key Specifications & Technical Details】5200W DC 48V Hybrid Solar Inverter. Output: Pure sine wave; supports single-phase, split-phase, and three-phase (120V/208V/240V). *(Only two inverters required for 240V/208V split-phase operation, with a total output capacity of up to 10,400W.)* Solar Charging: Built-in 100A MPPT charge controller; maximum PV input: 6,000W; PV open-circuit voltage VOC range: 120-500Vdc. Battery Compatibility: Supports 48V lead-acid or lithium batteries (optional; battery-less operation available). Parallel Support: Capable of parallel connection for up to 6 units. Communication Interfaces: CAN, USB, and RS485
• 【Intelligent Power Saving】Power saving mode available to reduce no-load loss, when the ECO mode is enabled, if the load is below 50W, the inverter output is delayed for 5 mins and then the output is turned off. When the hull switch is pressed to the ""OFF"" State, and then pressed to the ""ON"" State, the inverter will resume the output
• 【Peak-Valley Tariff Management】Supports 3 customizable time periods (00:00-23:59) for optimized charging/discharging based on local electricity rates. Features: BT1ST Mode (Grid Charging) and AC1ST Mode (Battery Discharging) for maximum cost savings.
• 【4 2 Operation Modes】5KW Pure Sine Wave Inverter features four charging modes (Solar Only/Grid Priority/Solar Priority/Hybrid) and two output modes (Grid Bypass/Inverter Output) with UPS function. Supports battery-free operation with anti-backflow protection for on-grid use. Includes full protection against short circuit, over/under voltage, and overload.
• 【Scalable Power with Full Protection】The PowMr 5200W Solar Inverter supports 6-unit parallel operation, enabling 240V split-phase (2 units) or 208V 3-phase (3 units) setups. Expandable up to 31.2kW for high-capacity needs. Features CAN/USB/RS485 for smart monitoring. 360° Safety: Short-circuit, over/under-voltage, overload, and backfeed protection ensure reliable operation. Perfect for homes, cabins, RVs, boats, and off-grid backup.
