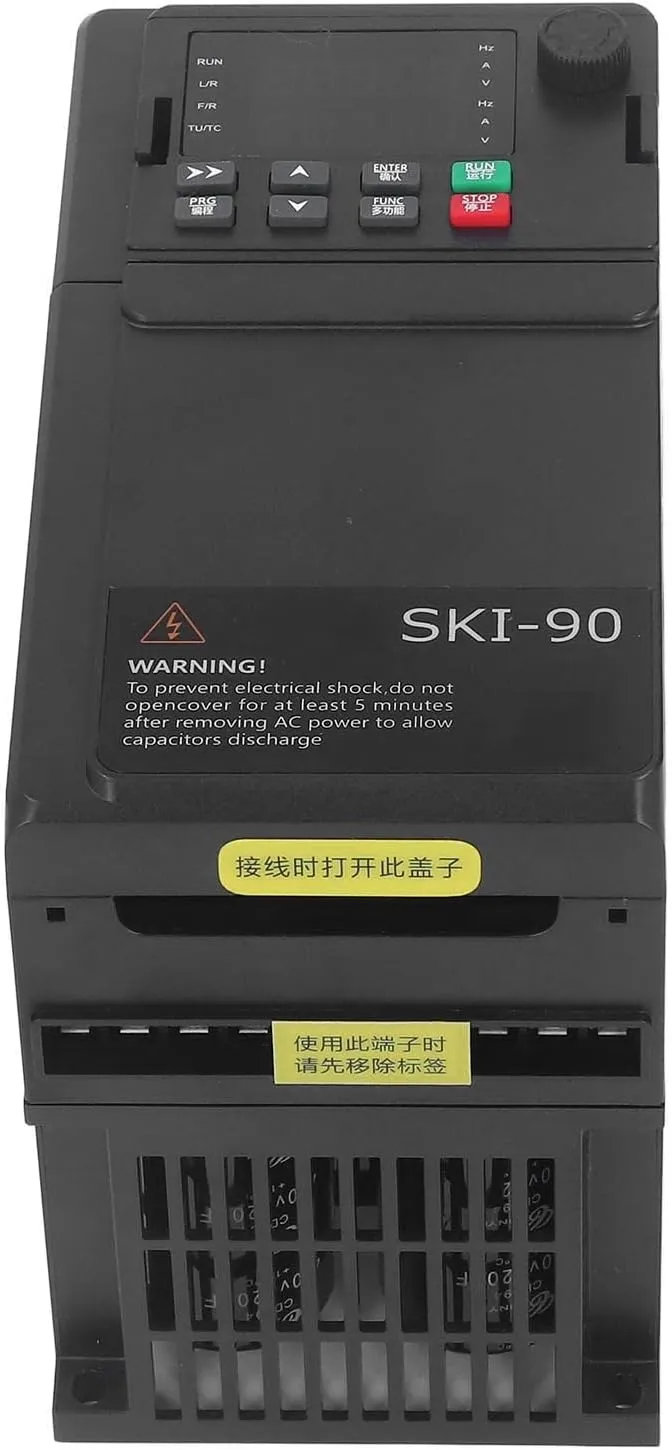

- STABLE PERFORMANCE: The inverter adopts integrated IGBT module, with stronger load carrying capacity and better stability, independent air duct design, superior stability performance.
- OVERCURRENT SUPPRESSION: Automatically limit the load current from exceeding the set overcurrent suppression point through real‑time monitoring of the load current during to prevent fault tripping caused by excessive current.
- OVER VOLTAGE SUPPRESSION When the bus voltage reaches or exceeds the overvoltage suppression point during the of the inverter, the inverter will automatically adjust the operating frequency to suppress the bus voltage increase.
- ABS CASE: The inverter is a double row digital tube display, with large low frequency torsion, high impact and high heat in ABS case, and strong flame retardancy.
- WIDE APPLICATION: Frequency converters are widely used for speed regulation of various 3 phase asynchronous motors to realize the functions of motor speed regulation, energy saving and environmental protection, and improving production efficiency.
Specification:
Item Type: Variable Frequency Drive
Material: ABS
Input: 3PH AC380V±15% 10.5A 50-60Hz
Output: 3PH AC0-380V 9.0A 0-400Hz
Power Supply Capacity: 5.9KVA
Applicable Motor: 4KW 5HP
Item Type Terminal Symbol Terminal Name Function
Power 10V-GND External 10V power supply Provide external 10V power supply, maximum output current: 150mA (with short circuit protection), generally used as external potentiometer working power, potentiometer range: 1kΩ-5kΩ
24V-COM External 24V power supply Provide external 24V power supply, generally used as digital input and output terminals, power supply and external sensor power supply, maximum output current: 200mA
Analog Terminal Al1-GND Analog input terminal 1 1. Input range: DC0-10V, 0-20mA, determined by parameter P4372. Input impedance: 22kΩ for voltage input, 500Ω for current input
AI2-GND Analog input terminal 2 1. Input range: DC0-10V,0-20mA, determined by parameter P4 372. Input impedance: 22kΩ for voltage input, 500Ω for current input
AO1-GND Analog output terminal 1 Output voltage range: 0V-10VOutput current range: 0mA
